ASROCK MAINBOARD (AM4) B450M HDV R4.0 - A0123053

Name: ASROCK MAINBOARD (AM4) B450M HDV R4.0 - A0123053
Brand: Asrock
SKU: 22721225674
Price: 1860 THB
Availability: InStock

★ 4.9ขายแล้ว 58

฿1,860

โค้ดส่วนลดร้านค้า

ลด 10%

ลด 20%

การจัดส่ง

ส่งฟรีทั่วประเทศ

รับของภายใน 2-4 วัน

การรับประกัน

ของแท้ 100% · เก็บเงินปลายทาง

จำนวน

−

มีสินค้า 29 ชิ้น

เพิ่มไปยังรถเข็น

ซื้อเลย

แชร์:Facebook LINE X

ราคาและสต็อกอาจเปลี่ยนแปลง — ตรวจสอบล่าสุดที่ Thaishops24

รายละเอียดสินค้า

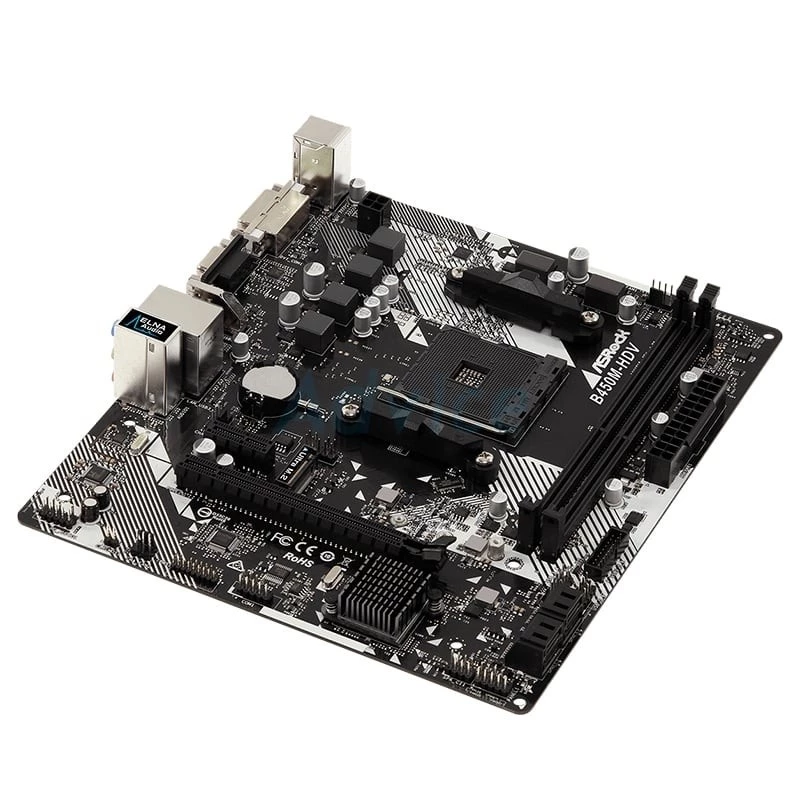

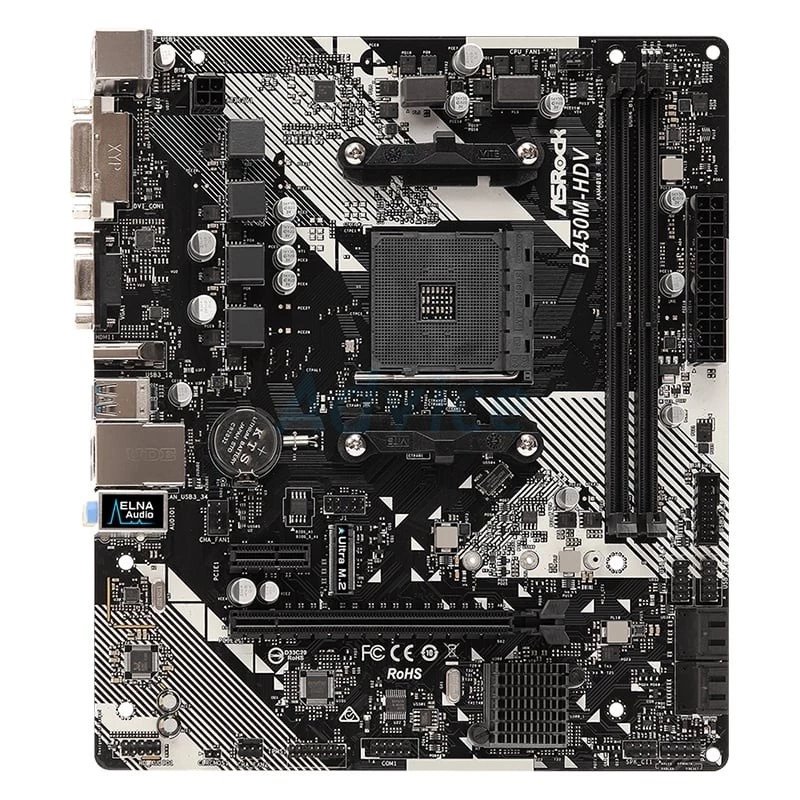

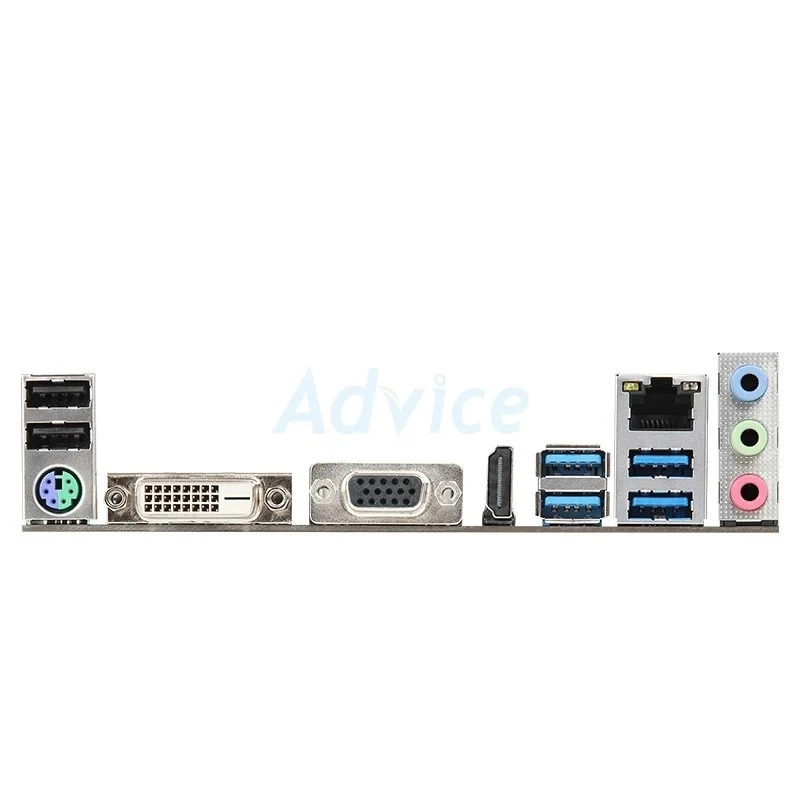

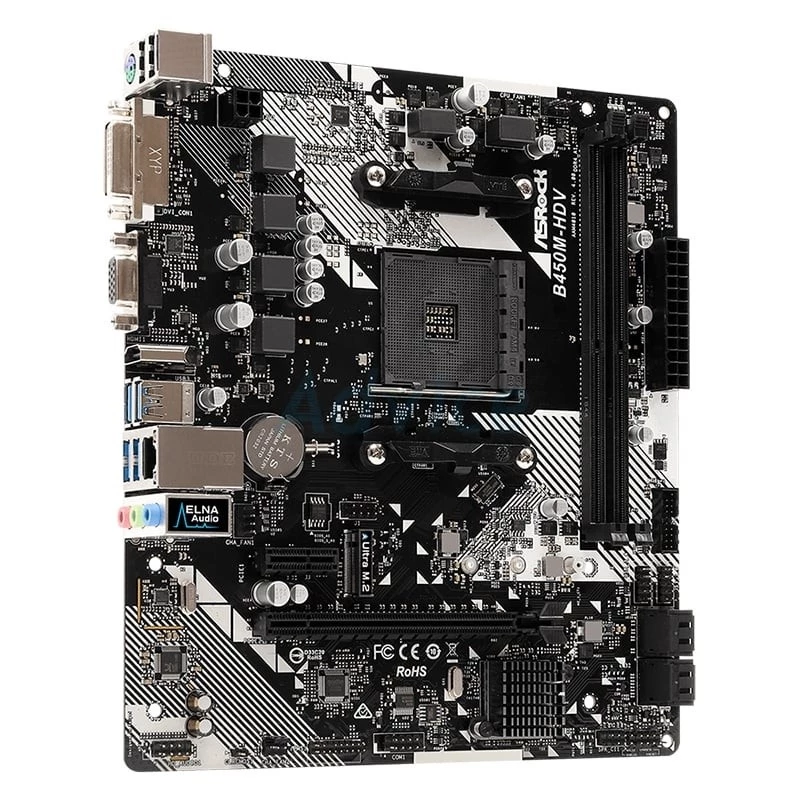

Brand ASROCK Model B450M-HDV R4.0 CPU Support AMD AM4 Socket 6 Power Phase design Supports CPU up to 105W Socket AM4 Chipset AMD B450 Memory Support Dual Channel DDR4 Memory Technology 2 x DDR4 DIMM Slots AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933/2667/2400/2133 non-ECC, un-buffered memory Max. capacity of system memory: 32GB 15μ Gold Contact in DIMM Slots Memory Type DDR4 Memory Bus 2667 / 2400 / 2133 MHz Memory Slot 2 Slots Graphics Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* DirectX 12, Pixel Shader 5.0 Shared memory default 2GB. Max Shared memory supports up to 16GB.** Three graphics output options: D-Sub, DVI-D and HDMI Supports Triple Monitor Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) Supports HDCP 1.4 with DVI-D and HDMI Ports Supports 4K Ultra HD (UHD) playback with HDMI Port *Actual support may vary by CPU **The Max shared memory 16GB requires 32GB system memory installed. Audio 7.1 CH HD Audio (Realtek ALC887 Audio Codec) Supports Surge Protection ELNA Audio Caps Expansion Slots AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge) • 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* AMD Ryzen series CPUs (Raven Ridge) • 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)* AMD Athlon series CPUs • 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode)* • 1 x PCI Express 2.0 x1 Slot *Supports NVMe SSD as boot disks Storage 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU)* *Supports NVMe SSD as boot disks Supports ASRock U.2 Kit Internal I/O Connectors 1 x COM Port Header 1 x TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin)* 2 x Chassis Fan Connectors (1 x 3-pin, 1 x 4-pin)** 1 x 24 pin ATX Power Connector 1 x 4 pin 12V Power Connector 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. **The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power. Back Panel Connectors 1 x PS/2 Mouse/Keyboard Port 1 x D-Sub Port 1 x DVI-D Port 1 x HDMI Port 2 x USB 2.0 Ports (Supports ESD Protection) 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone LAN PCIE x1 Gigabit LAN 10/100/1000 Mb/s Realtek RTL8111H Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE Form Factor Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm Solid Capacitor design H/W Monitoring CPU/Chassis temperature sensing CPU/Chassis Fan Tachometer CPU/Chassis Quiet Fan CPU/Chassis Fan multi-speed control CASE OPEN detection Voltage monitoring: +12V, +5V, +3.3V, Vcore BIOS 128Mb AMI UEFI Legal BIOS with GUI support Supports "Plug and Play" ACPI 5.1 compliance wake up events Supports jumperfree SMBIOS 2.3 support DRAM Voltage multi-adjustment Special Features ASRock Super Alloy • High Density Glass Fabric PCB • Sapphire Black PCB ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop Software Features Software • ASRock A-Tuning • ASRock XFast LAN UEFI • ASRock Full HD UEFI • ASRock Instant Flash • ASRock Easy RAID Installer *These utilities can be downloaded from ASRock Live Update & APP Shop. Operating System Support Microsoft® Windows® 10 64-bit Dimension (W x D x H) : 23.00 x 20.10 x 3.20 cm Net Weight 0.45 KG Package Dimension (W x D x H) : 27.50 x 24.00 x 6.00 cm Gross Weight 0.76 KG Volume 3,960.00 cm3
