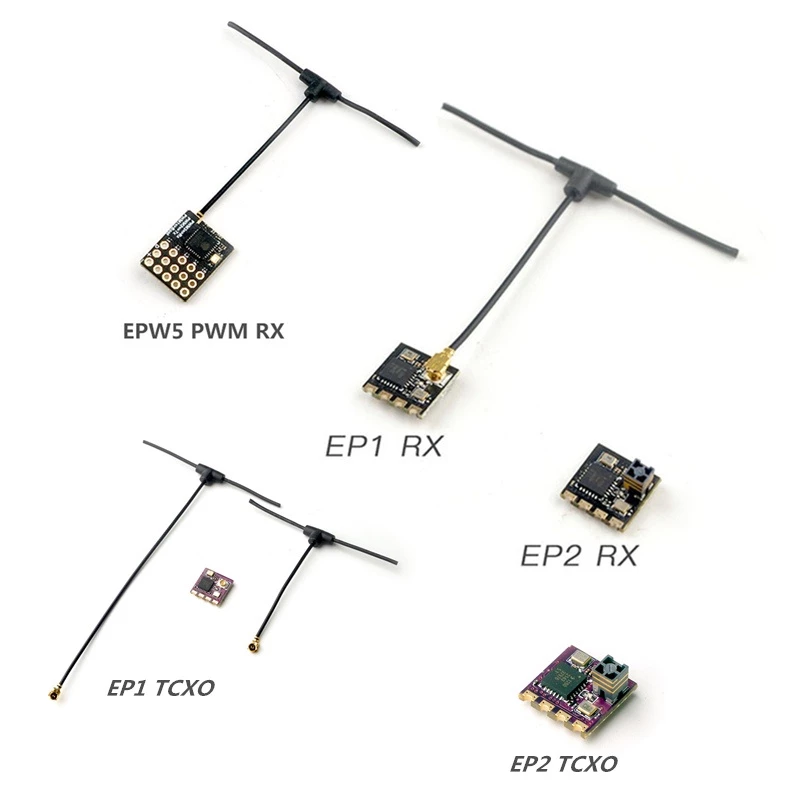

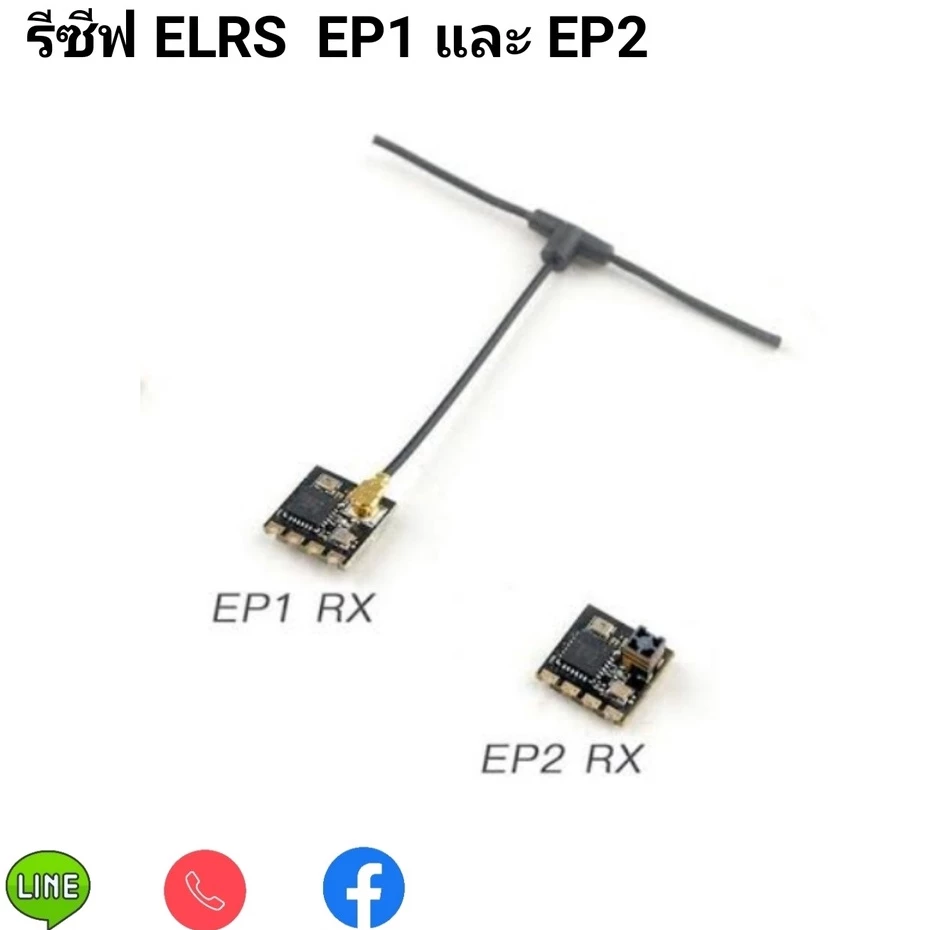

[รีซีฟ] Happymodel ELRS 2.4GHz EXPRESSLRS Nano EP1 EP2 และรุ่น TCXO EP1 EP2 EPW6 Long Range Receiver

Name: [รีซีฟ] Happymodel ELRS 2.4GHz EXPRESSLRS Nano EP1 EP2 และรุ่น TCXO EP1 EP2 EPW6 Long Range Receiver
Brand: NoBrand
SKU: 12141845933
Price: 690 THB
Availability: InStock

★ 5.0ขายแล้ว 1

฿690

โค้ดส่วนลดร้านค้า

ลด 10%

ลด 20%

การจัดส่ง

ส่งฟรีทั่วประเทศ

รับของภายใน 2-4 วัน

การรับประกัน

ของแท้ 100% · เก็บเงินปลายทาง

จำนวน

−

มีสินค้า 4 ชิ้น

เพิ่มไปยังรถเข็น

ซื้อเลย

แชร์:Facebook LINE X

ราคาและสต็อกอาจเปลี่ยนแปลง — ตรวจสอบล่าสุดที่ Thaishops24

รายละเอียดสินค้า

EP1_RX Type: ISM ESP8285 MCU SX1280IMLTRT RF Module Omnidirectional antenna Frequency Range: 2400 MHz to 2500 MHz Maximum receive refresh rate: 500Hz Minimum receiver refresh rate: 25Hz Working voltage: 5v Weight: 0.42gram(without antenna) Dimension: 10mm*10mm*6mm Peak gain: 2.23dB EP2_RX Specifications: Type: ISM ESP8285 MCU SX1280IMLTRT RF Module SMD Ceramic antenna Frequency Range: 2400 MHz to 2500 MHz Maximum receive refresh rate: 500Hz Minimum receiver refresh rate: 25Hz Working voltage: 5v Weight: 0.44gram Dimension: 10mm*10mm*6mm Peak gain: 3.7dB EP1 TCXO Receiver Type: ISM2.4GHz ESP8285 MCU SX1280(SX1281)IMLTRT RF Module Omni directional antenna Frequency Range: 2400 MHz to 2500 MHz Receive refresh rate: 25HZ~500Hz Working voltage: 5V Weight: 0.41g (without antenna) Dimension: 10mm*10mm*6mm Peak gain: 2.23dB Default Firmware out of factory: HappyModel_EP_2400_RX V2.2 version Built-in a TCXO (temperature compensated crystal oscillator) EP2 TCXO Receiver Type: ISM2.4GHz ESP8285 MCU SX1280(SX1281)IMLTRT RF Module SMD Ceramic antenna Frequency Range: 2400 MHz to 2500 MHz Receive refresh rate: 25HZ~500Hz Working voltage: 5v Weight: 0.44g Dimension: 10mm*10mm*6mm Peak gain: 3.7dB Default Firmware out of factory: HappyModel_EP_2400_RX V2.2 version Built-in a TCXO (temperature compensated crystal oscillator) EP1 Dual TCXO Receiver Type: ISM2.4GHz ESP32 PICO D4, dual SX1280(SX1281) Antenna connector: IPEX MHF 1/U.FL RF Frequency: 2.4GHz (2400~2480MHz) Telemetry power: >19dbm Receiver protocol: CRSF Input voltage: +5V DC @ “+” pad PCB size: 19mm x 14mm Weight: 1g (excluding antenna) Built-in a TCXO (temperature compensated crystal oscillator) Firmware: HappyModel EP1 Dual 2400 RX (starting from ExpressLRS V3.0) Both manufacturers dual diversity receivers have multicolored LED for status indication. SuperD and EP1 Dual receiver RGB status indication is shown below. RGB Color Status Description Rainbow Fade effect Power on Green Quick flash WIFI upgrading mode Red Quick flash No RF chip detected Orange Double flash Binding mode Orange Triple flash Connected, but mismatched model-match configuration Orange Slow flash Waiting for connection Solid on Connected and color indicates packet rate (see below) Specifications: Item: Happymodel EPW6 TCXO 2.4GHz pwm receiver ESP8285, SX1280/1281 Antenna connector: IPEX MHF 1/U.FL 6x PWM outputs RF Frequency: 2.4GHz (2400~2480MHz) Telemetry power: 12dbm Receiver protocol: PWM or CRSF Input voltage: +5v~8.4v PCB size: 19mm x 17.5mm Weight: 1.49g / antenna Firmware: Target option1: Generic ESP8285 6xPWM 2.4Ghz RX PWM receiver via 1~6 PWM outputs Target option2:HappyModel_EP_2400_RX CRSF Serial receiver via TX and RX Firmware update via WIFI Package Included: 1 x Happymodel EPW6 TCXO 2.4GHz PWM Receiver 2 x 2.4GHz antenna 3 x 7pin 2.54mm
